Assembly Instructions | Portable Cart Hose Reels

Assembly Videos

Model 1043 (Standard Capacity)

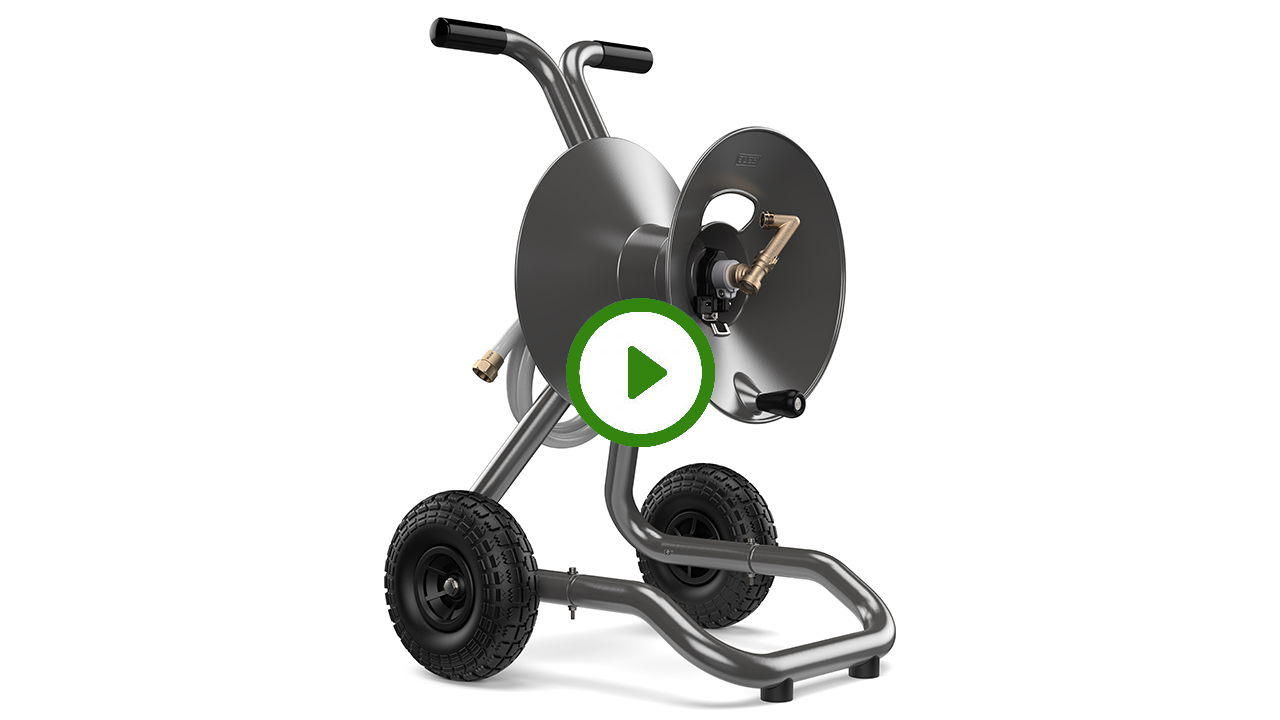

This step-by-step video walks you through the assembly and installation of the standard-capacity ELEY Model 1043 two-wheel cart garden hose reel.

Model 1043X (Extra-Capacity)

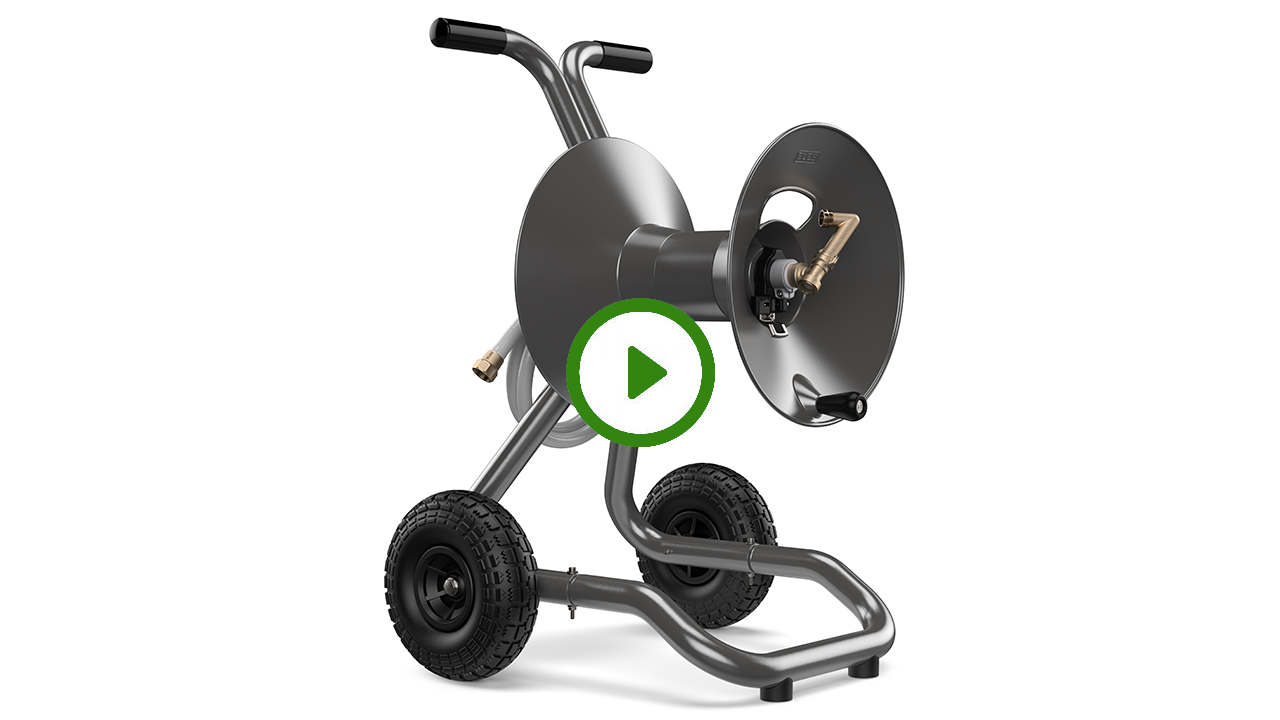

This step-by-step video walks you through the assembly and installation of the standard-capacity ELEY Model 1043X two-wheel cart garden hose reel, which is built from two products:

  1. Model 1043 two-wheel cart hose reel
  2. Item 1044 extra-capacity kit

Model 1043Q (Standard Capacity)

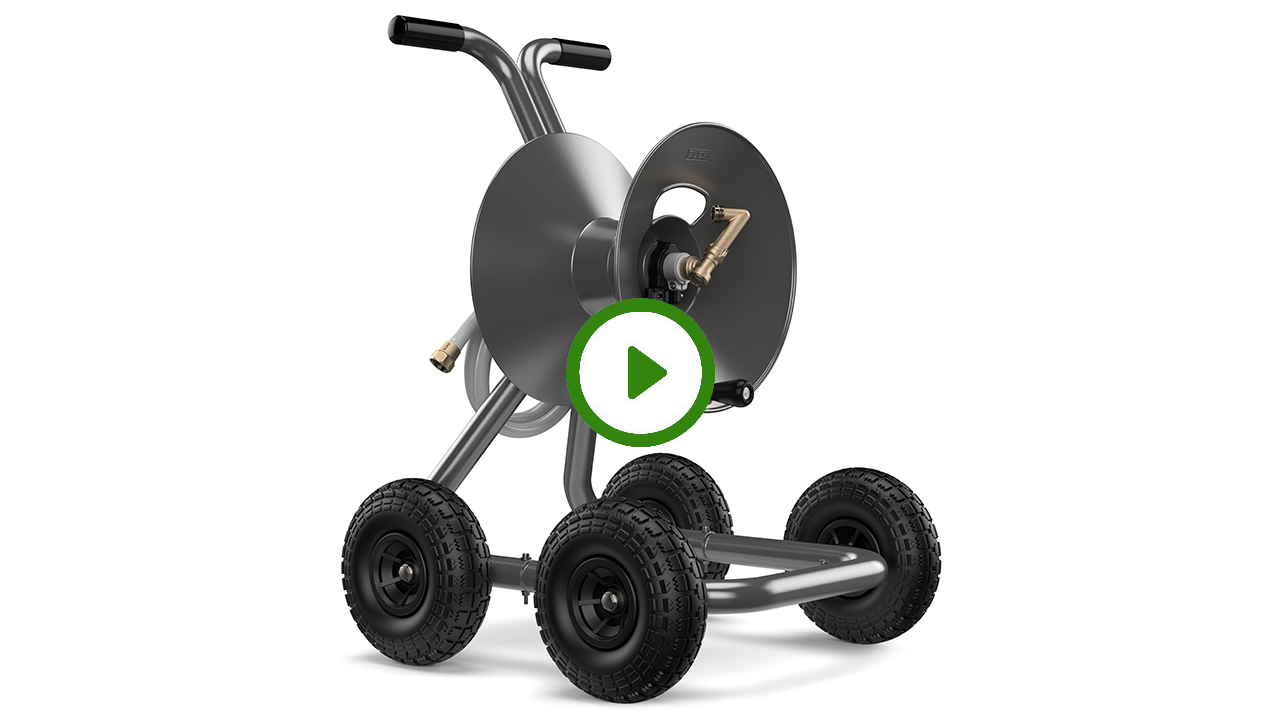

This step-by-step video walks you through the assembly and installation of the standard-capacity ELEY Model 1043Q four-wheel cart garden hose reel, which is built from two products:

  1. Model 1043 two-wheel cart hose reel
  2. Item 1045 quad-wheel kit

Model 1043QX (Extra-Capacity)

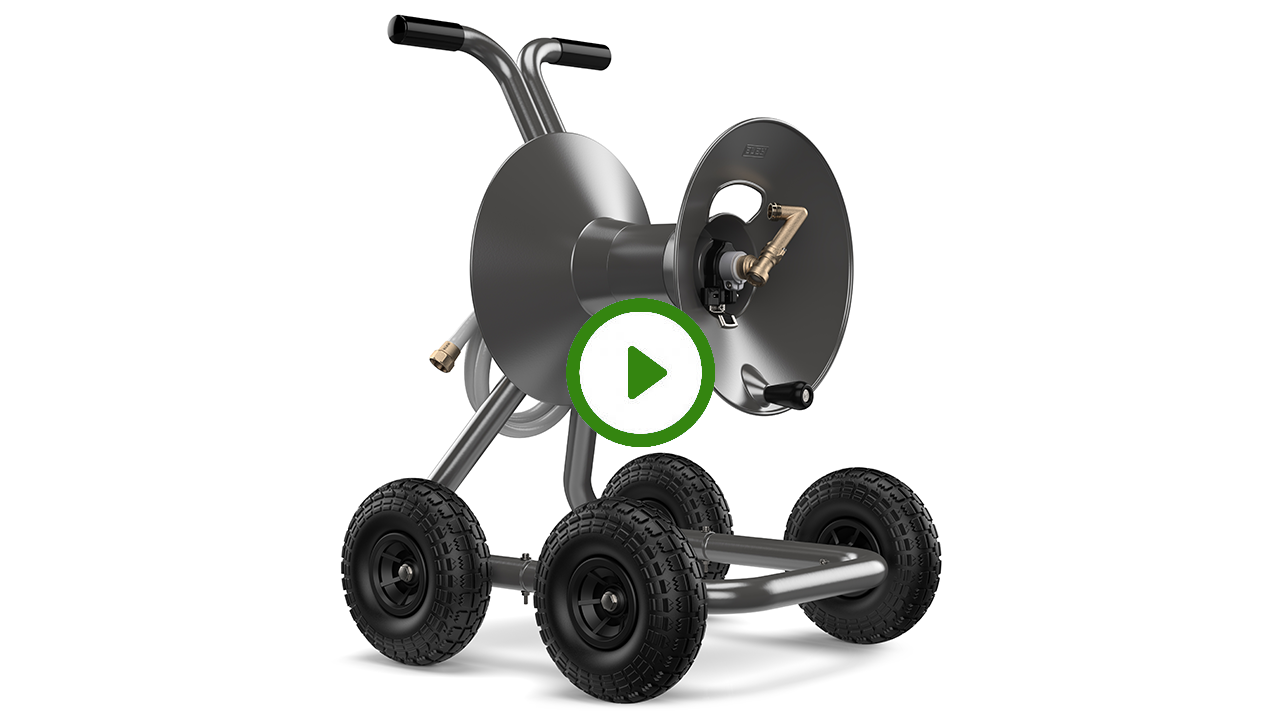

This step-by-step video walks you through the assembly and installation of the extra-capacity ELEY Model 1043QX four-wheel cart garden hose reel, which is built from three products:

  1. Model 1043 two-wheel cart hose reel
  2. Item 1044 extra-capacity kit
  3. Item 1045 quad-wheel kit

PDF Assembly Manuals

Garden Hose Reel Carts Assembly FAQs
How can I keep the reel from tipping over?

Usually, this is caused by the cam lever brake being set too tight. Please watch this video on how to properly adjust and use the cam-lever brake. Watch this linked video demonstrating how to set and use our innovative cam-lever brake.

Watch Cam-Lever Brake Operational Video
How do I reattach a rubber footpad that has come off the front bumper?

Watch this short, linked video for a quick, easy guide to reattaching the footpad to the cart frame.

Re-attaching the rubber footpad
