Garden Hose Spray Nozzle Sets

In stock
SKU: SP-1182

Price will auto-adjust based on options selected below.

$57.18 $64.98

Meet the most rugged and durable spray nozzle set on the market. Two versatile spray pattern nozzles are available with the comfort-grip spray valve. Select the best combination set for your application—backed by ELEY's industry-leading 10-YEAR No-Leak, No-Fail guarantee & warranty.

Sale Ends in...
0
Day
00
Hour
00
Min
00
Sec
Ends April 23, 2024 at 12:00 am

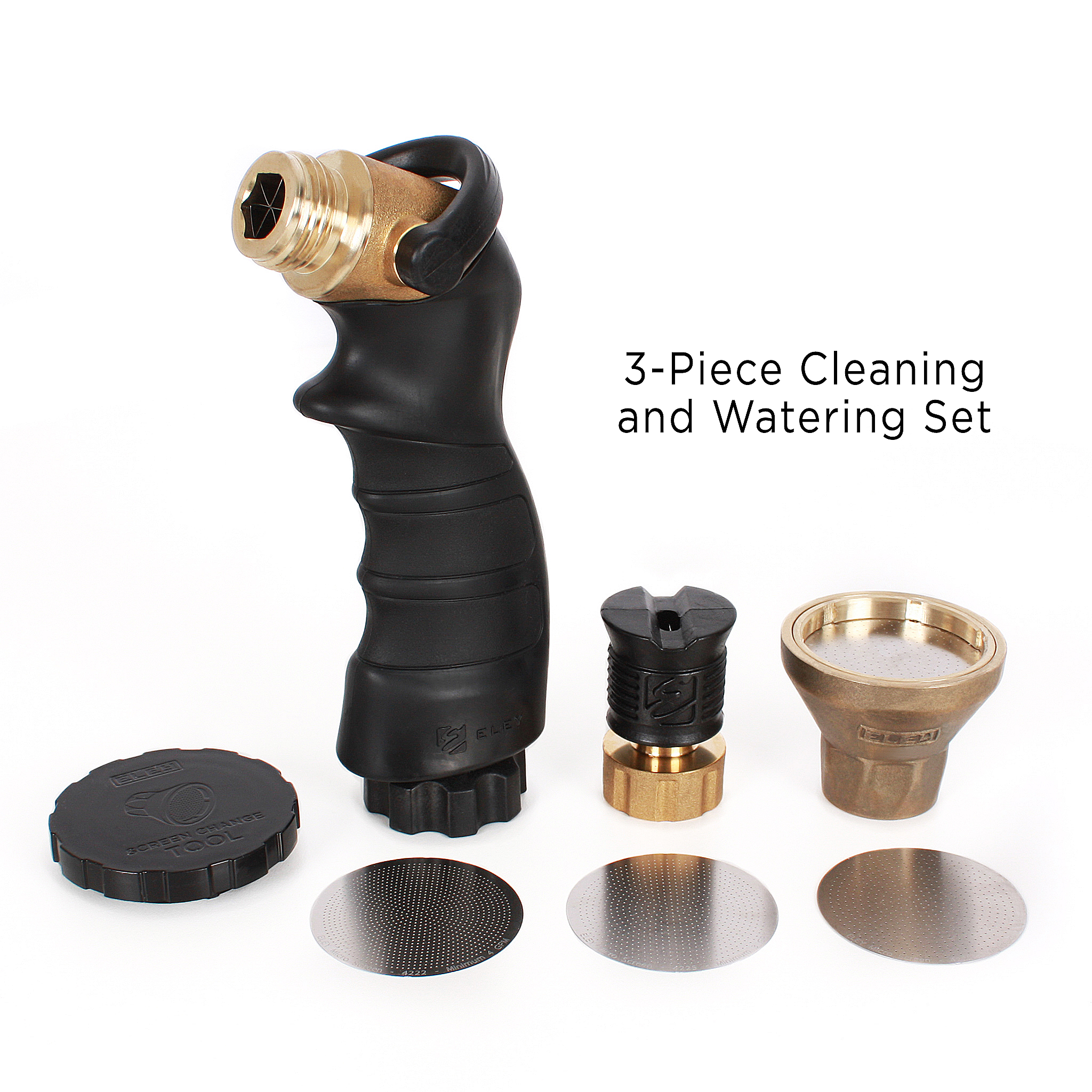

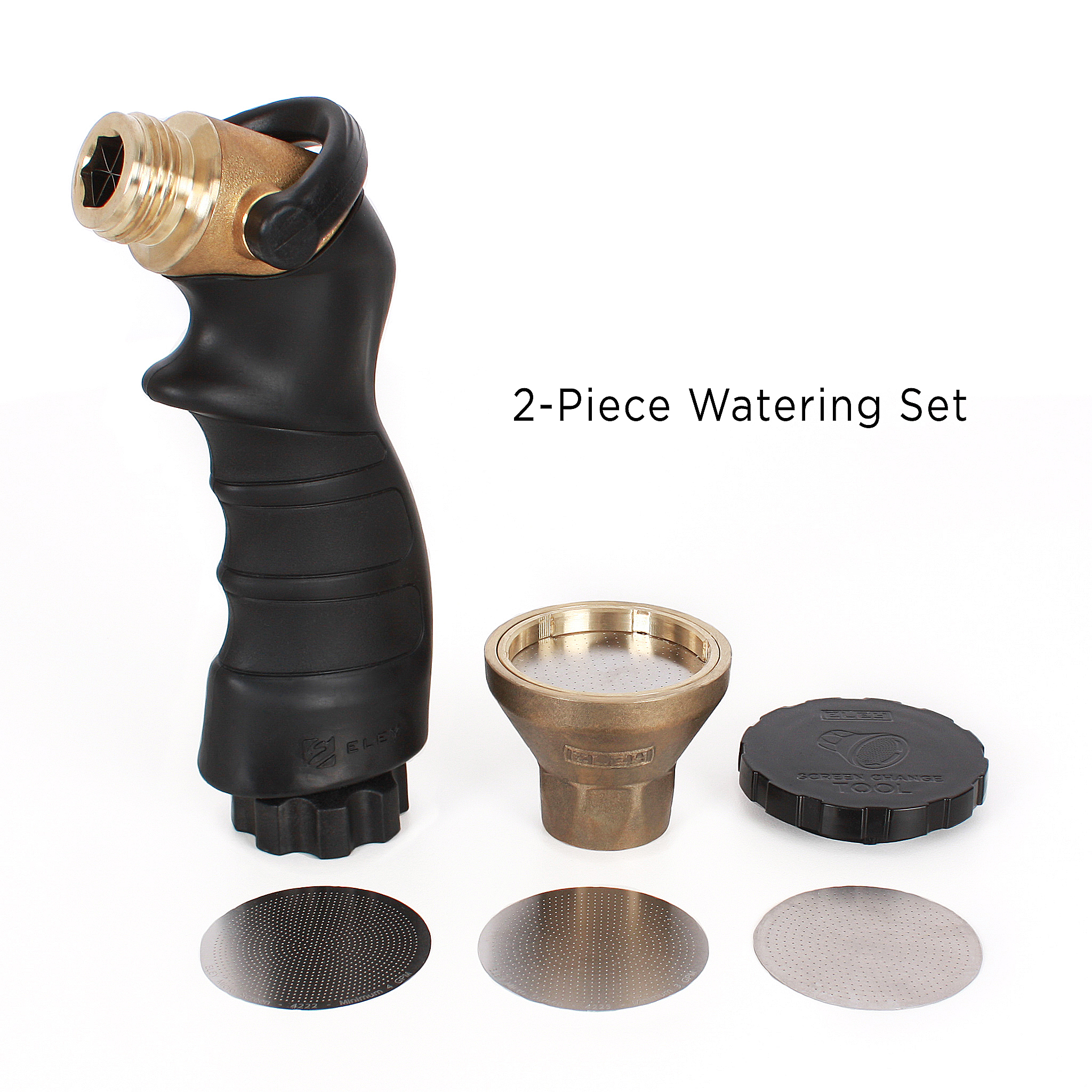

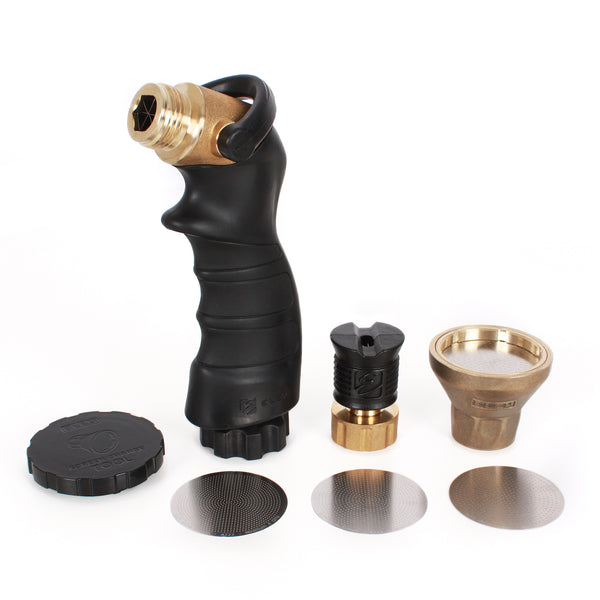

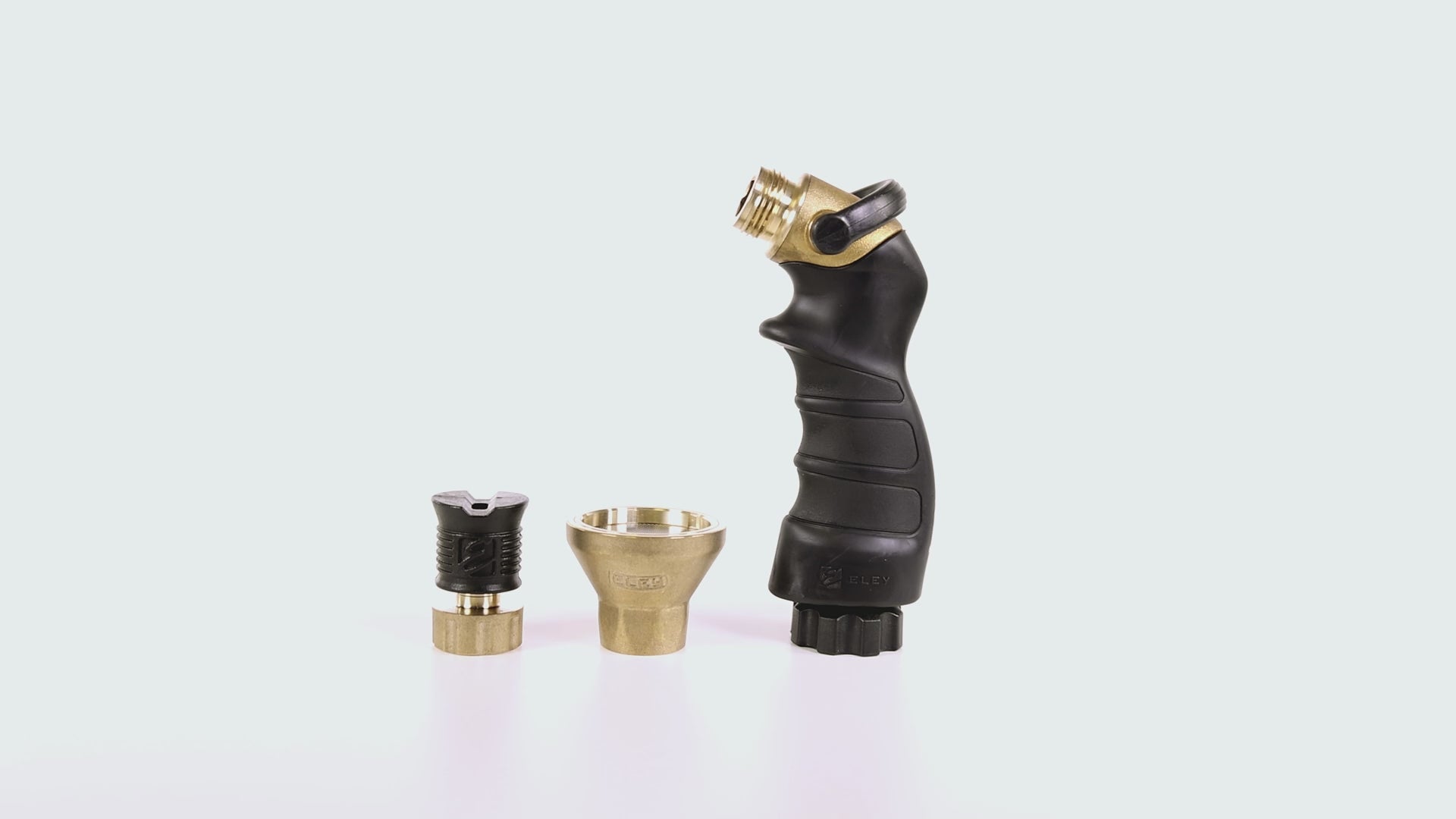

Available Combinations
View details

10-YEAR WARRANTY

NO-Leak, NO-Rust, NO-Fail Guarantee!

FAST SHIPPING - Free for orders over $75

Delivered to 95% of USA in just 1 to 3 Days!

FREE & EASY RETURNS

30-Day Money Back Guarantee!
10-YEAR WARRANTY

Commercial Duty Construction

The first thing you'll notice about the ELEY spray nozzle set is how HEAVY-DUTY it is. While many traditional spray nozzles can restrict water flow by more than half, the high-grade ECO-brass plumbing and a full-flow, chrome-plated brass ball valve deliver every possible ounce of water directly to the spray nozzle tip. While rotating heads may be popular on many spray nozzles sold today, they simply can't hold up to the demanding 10-year no-leak, no-fail guarantee that backs every ELEY product. Although ELEY nozzles may take a couple more seconds to change out, the durable brass threads will easily provide over 10 years of leak-free performance. All ELEY watering tools are 100% drinking water safe.

User-Friendly Features

ELEY's cutting-edge features were designed to make watering tasks easier and more enjoyable. The oversized stay-put flow control lever can be adjusted with just one finger (or thumb) and stays exactly where you set it, from full flow down to just a trickle. The full-palm-grip molding is made from extra-thick material and is ergonomically contoured to eliminate discomfort from cold water and hand cramping. The revolutionary swivel fitting spins freely under pressure, allowing the spray nozzle to rotate in any direction, independent of the rigid force of the hose, keeping the hose from twisting, loosening, or leaking while in use.

Custom-Fit Watering Performance

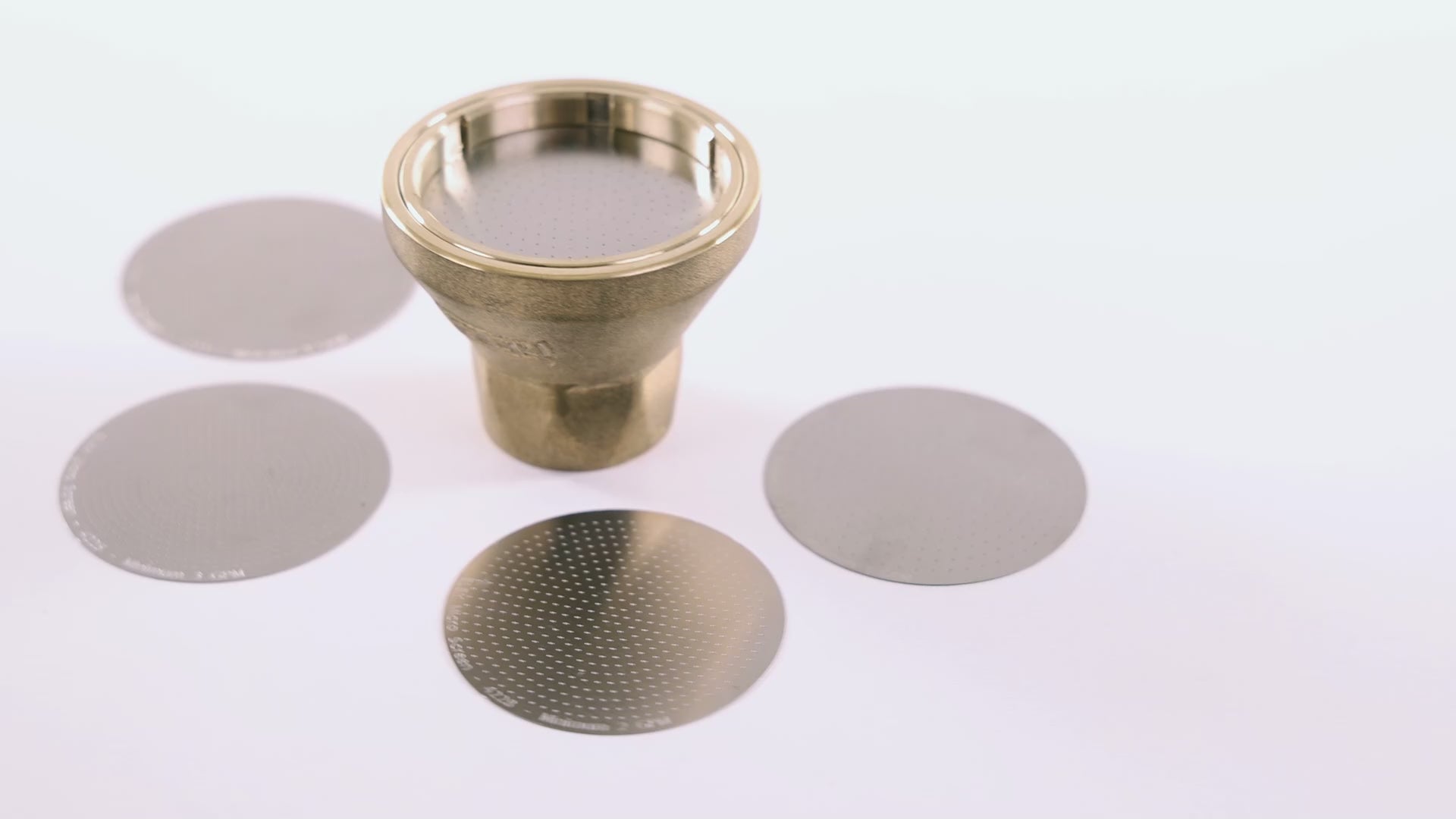

This innovative watering nozzle comes with four interchangeable stainless-steel screens and a quick-change tool, allowing for quick and easy changing out of the screens. The four screens are labeled with minimum flow requirements, ranging from 1 to 4 gallons per minute (GPM). Try each of the four screens to determine which delivers the best gentle watering pattern for the flow level of your particular water supply system. The lower your system's water flow, the lower GPM screen you'll want to use. Made from ECO-brass and stainless-steel this nozzle is 100% drinking water safe.

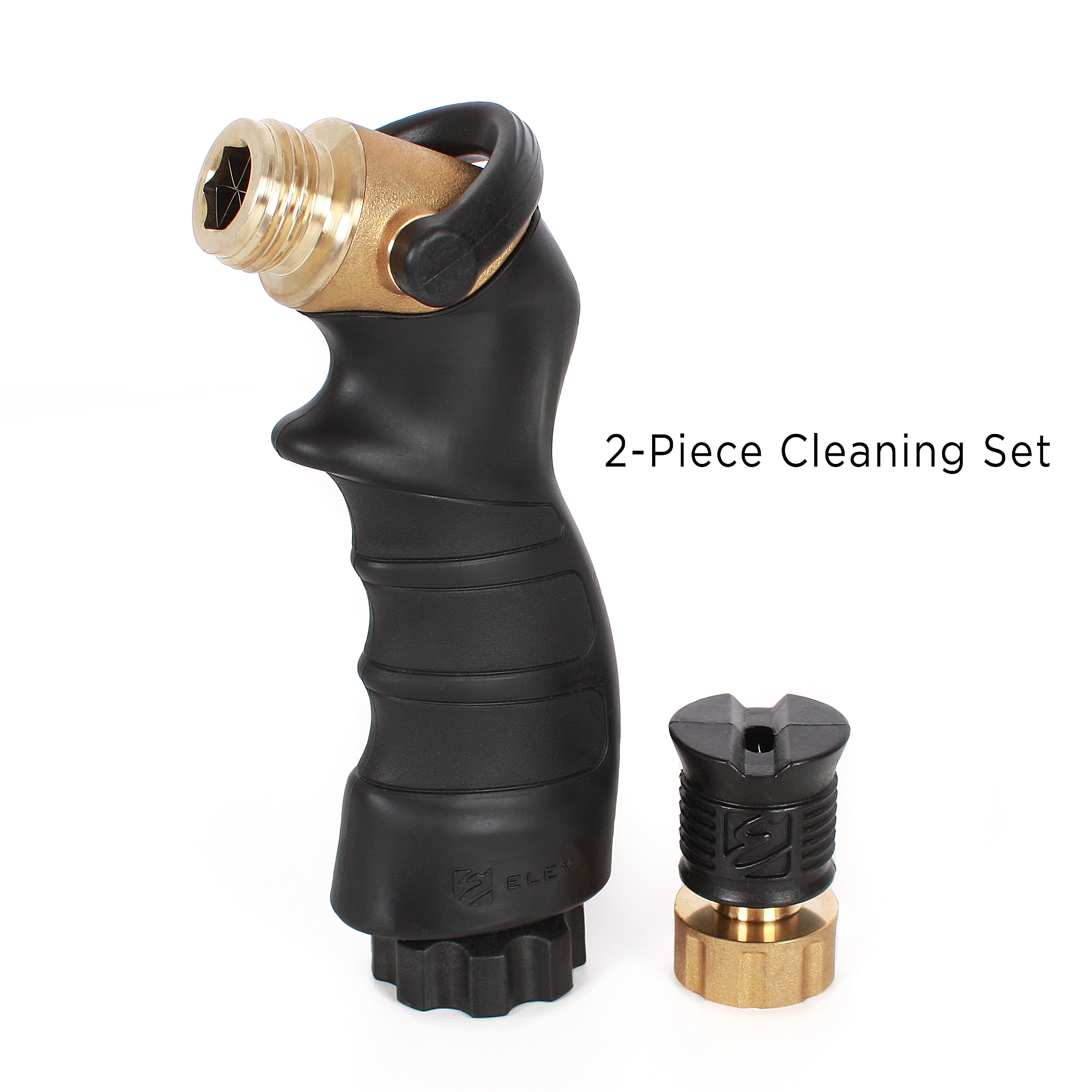

3-Pattern Cleaning Nozzle

Our versatile and easy-to-use cleaning nozzle offers three multi-use patterns for any cleaning need. Pull the nozzle fully in for a 30-degree gentle fan pattern, ideal for washing down more delicate surfaces like vehicles. Push the nozzle to the middle position for a more aggressive 15-degree fan pattern to tackle more stubborn cleaning tasks. Push the nozzle out to the third position for the zero-degree laser jet and dirt buster pattern for the really tough cleaning jobs.

Frequently Asked Questions - Spray Nozzle Sets

These FAQs are specific to the Spray Nozzle Set. For general FAQs (specifications, ratings, etc.) about all ELEY watering tools, visit our Watering Tools FAQs.
Is this item drinking water safe?

Yes.  Water flowing through your ELEY reels, hoses, and watering tools stays pure because we use only 100% drinking water-safe internal component materials. From the lead-free brass and rubber seals down to the assembly lube—it’s all safe.
What is the inside diameter (ID) of the interior ball valve?

When fully open, the interior ball valve creates an opening 0.55 inches in diameter (14mm) or just over 1/2" inside diameter (ID).
What type of threads are used on this spray nozzle set?

All threads on this product are 3/4-inch standard Garden Hose Threads (GHT).  Accordingly, the hand-held valve nozzle and the spray nozzles can be directly threaded onto any brand of standard garden hose or watering tool.  Virtually all garden hoses and watering tools used in North America (whether 1/2-inch, 5/8-inch, or 3/4-inch) are equipped with these same 3/4-inch (GHT) threads.

What is the grip made from? I have a contact allergy to rubber.

The rubber grip material is thermoplastic vulcanizate (TPV).  Santoprene - Wikipedia. All other elastomers are NSF-approved EPDM.

What is the maximum flow rate for each screen?

The maximum flow for each screen is as follows:

  • 1 GPM screen = Max 7 GPM
  • 2 GPM screen = Max 12 GPM
  • 3 GPM screen = Max 18 GPM
  • 4 GPM screen = Max 25 GPM

However, your actual flow may be affected by the volume of your system at the faucet and the length and size of the garden hose used.
What distance will the showerhead watering nozzle reach?

It's not possible to determine the reach of the spray pattern for your particular application because there are too many unknown factors. If your water supply has low flow, meaning you have low water pressure or volume, then you may need the 1 GPM Minimum screen to produce a spray pattern that doesn't dribble. On the other hand, if your system has plenty of flow, the range of screens allows you to choose a spray pattern that will either reach a further distance (1 GPM screen) or deliver more volume (4 GPM screen).
