Assembly Instructions | Free-Standing Hose Reel

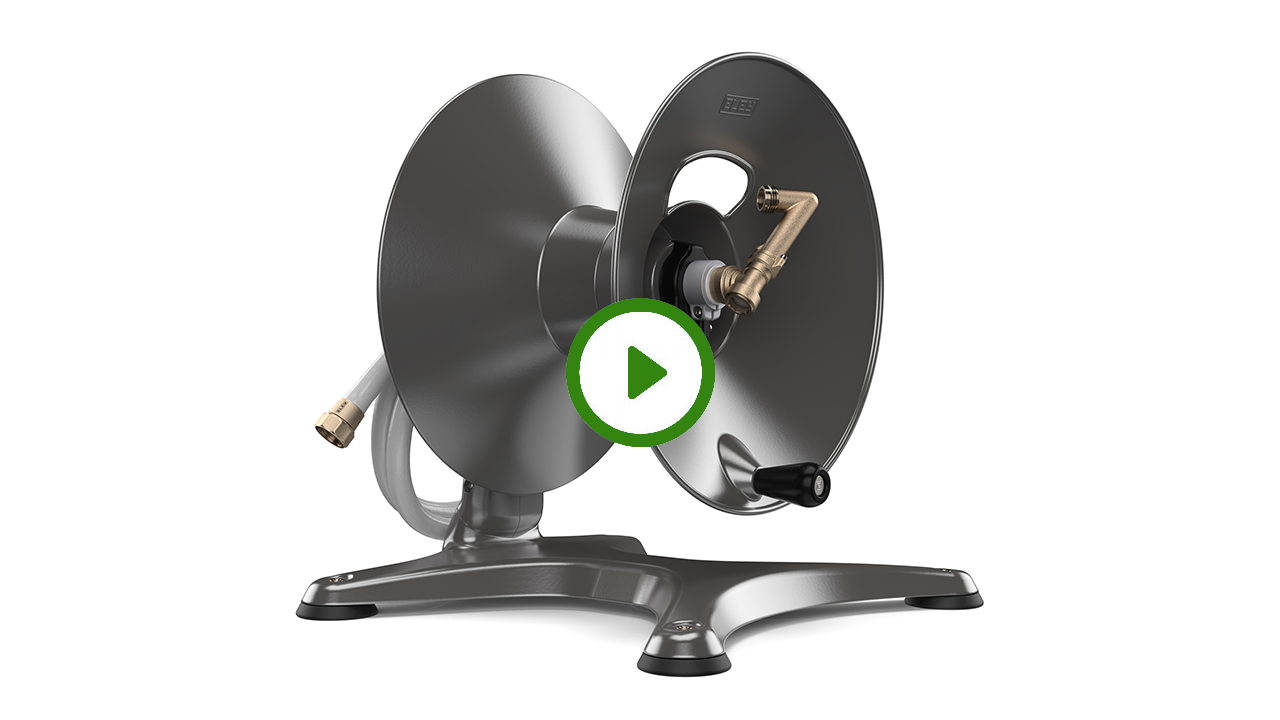

Model 1042 (Standard-Capacity) Reel Assembly
This step-by-step video walks you through the assembly of the standard-capacity ELEY Model 1042 free-standing garden hose reel.

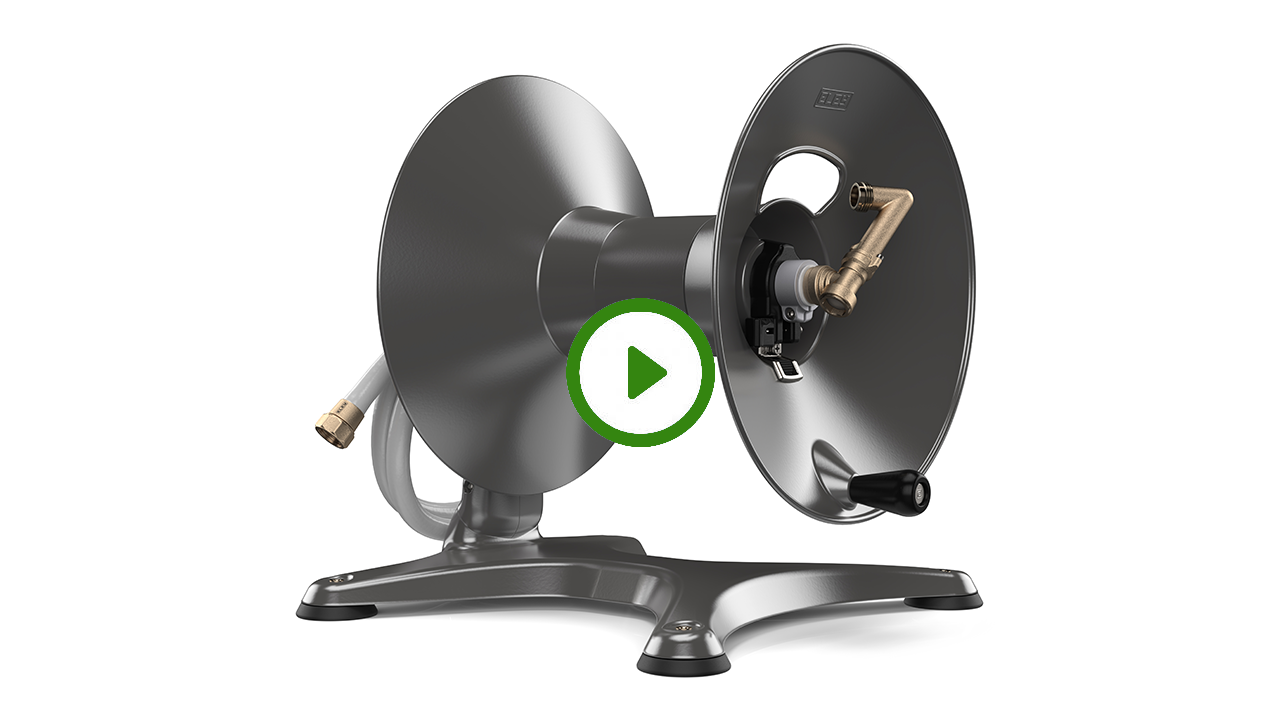

Model 1042X (Extra-Capacity) Reel Assembly
This step-by-step video walks you through the assembly of the extra-capacity ELEY Model 1042X free-standing garden hose reel, which is built from two products:
- Model 1042 free-standing hose reel
- Item 1044 extra-capacity kit

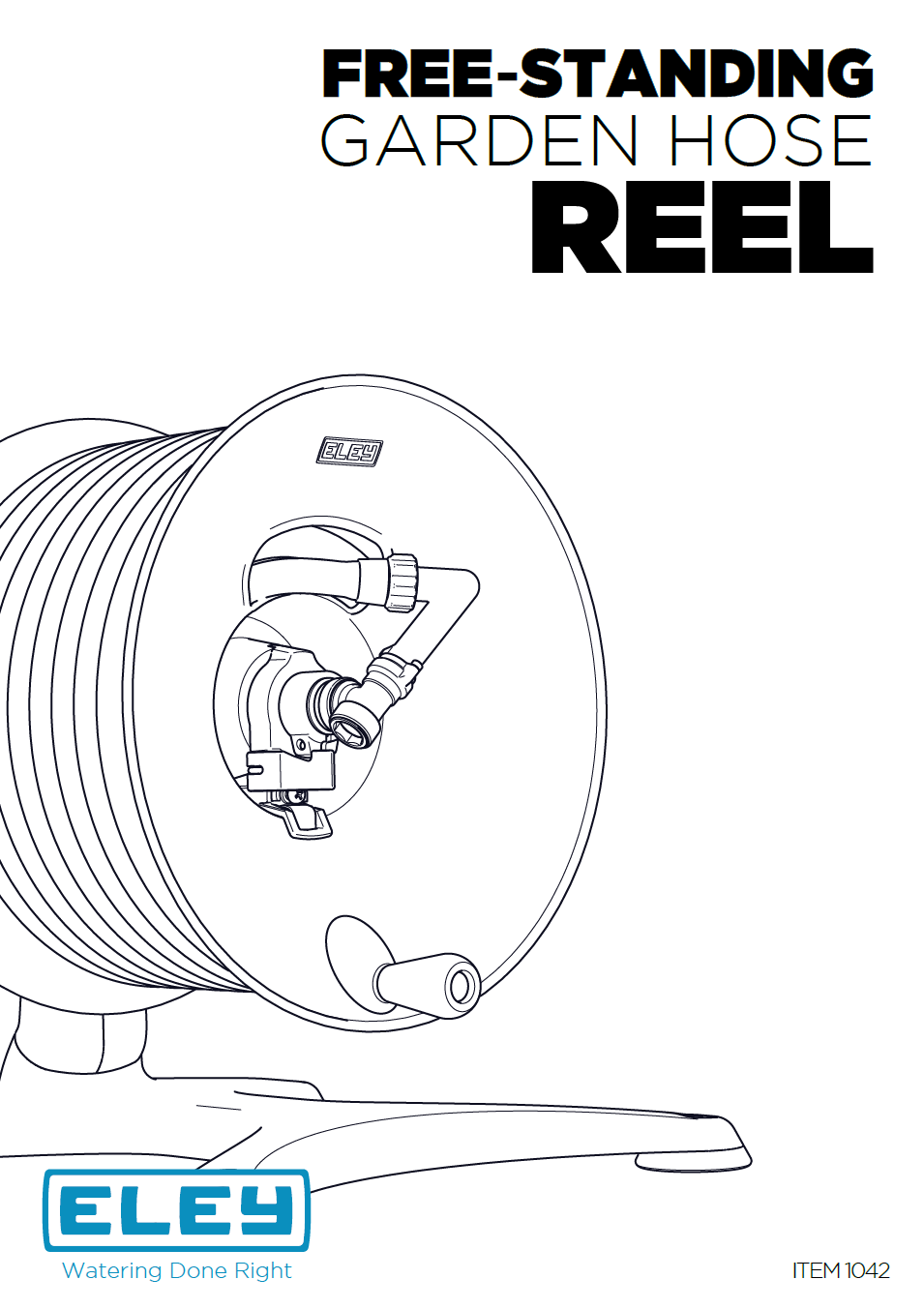

PDF Assembly Manuals
Additional Anchoring Options

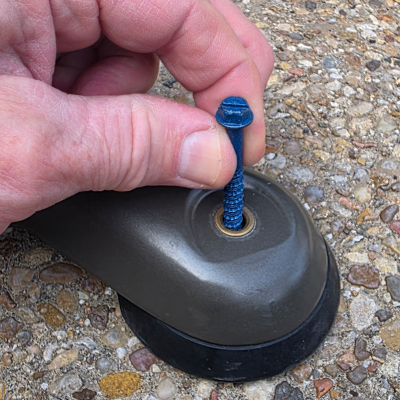

In the event you want to add more stability to the reel, each foot has a 1/4-inch hole running through the center which can be used for secure anchoring. View this article to explore a variety of anchoring options:Zero-Tip Anchoring Options
Free-Standing Hose Reel Assembly FAQs
How can I keep the reel from tipping over?
Usually, this is caused by the cam lever brake being set too tight. Please watch this video on how to properly adjust and use the cam-lever brake. Watch this linked video demonstrating how to set and use our innovative cam-lever brake.
Can the reel be anchored so as to prevent tipping over?
Yes, the rubber feet on the base have 1/4-inch open rivet holes for anchoring the reel to a solid surface. This linked blog provides a variety of anchoring options submitted by some ELEY customers.
