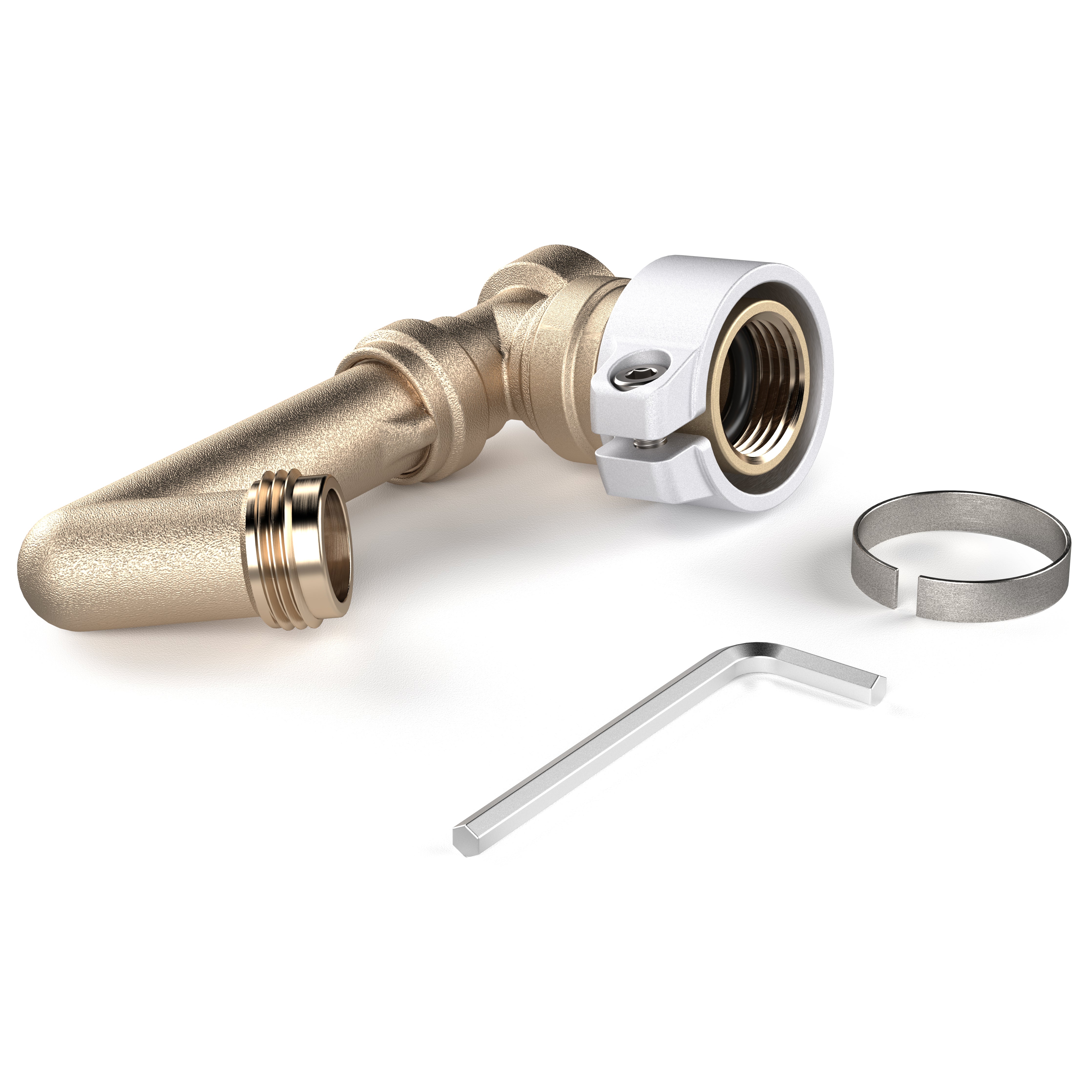

Garden Hose Reel Swivel

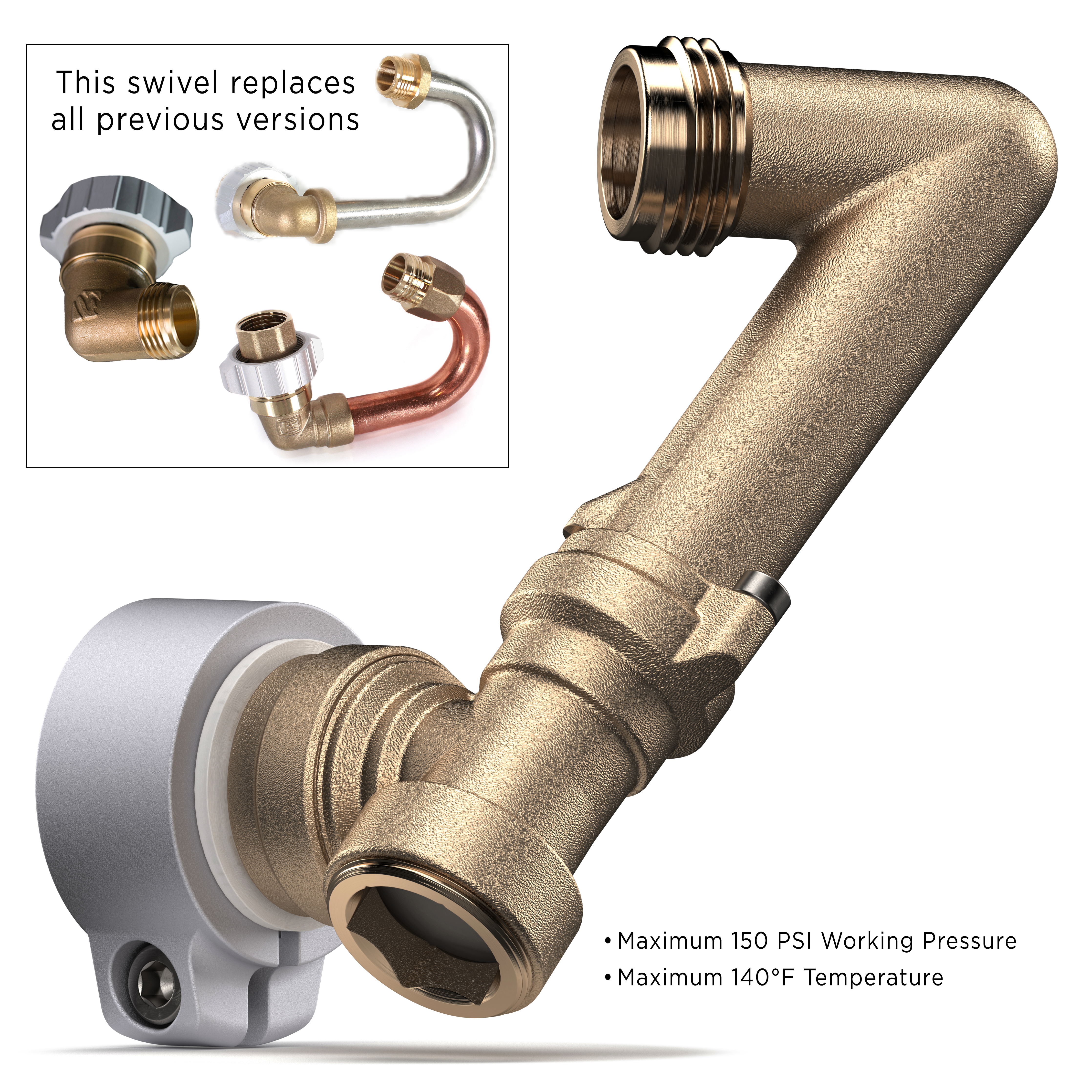

This item replaces all previous swivels, including item numbers 2914, 4112, 4205, 4255, and 4290.
FREEZE DAMAGE? If your swivel failure was due to freeze damage, you'll need to purchase this item as freeze damage is NOT covered by our warranty.
- Winterization Procedure video & article.
- Assessing Freeze Damage article & Warranty Claim Form link.
This swivel will retrofit onto all ELEY, Rapid-Reel, TRITON and Pro-Line hose reels sold since year 2000, with the following two exceptions:
- Pre-2006 RR series reels
- Pro-Line Model GH164-PD reels

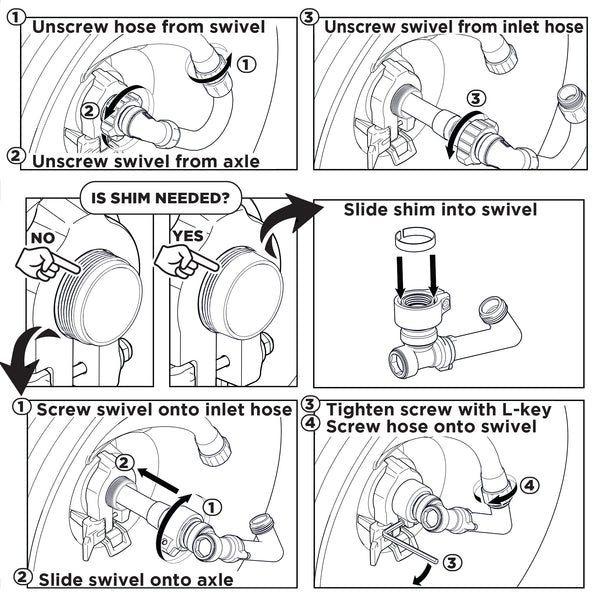

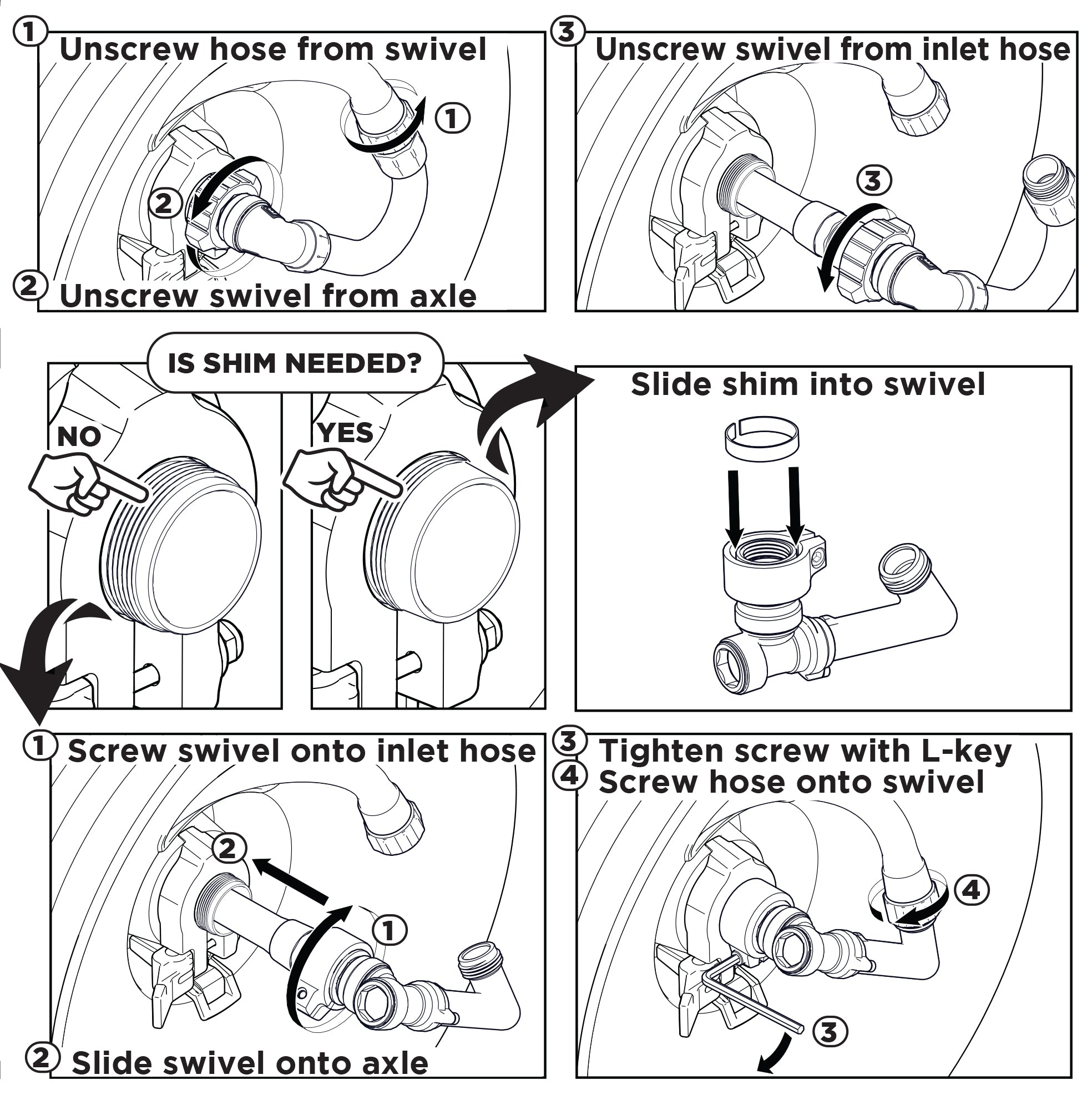

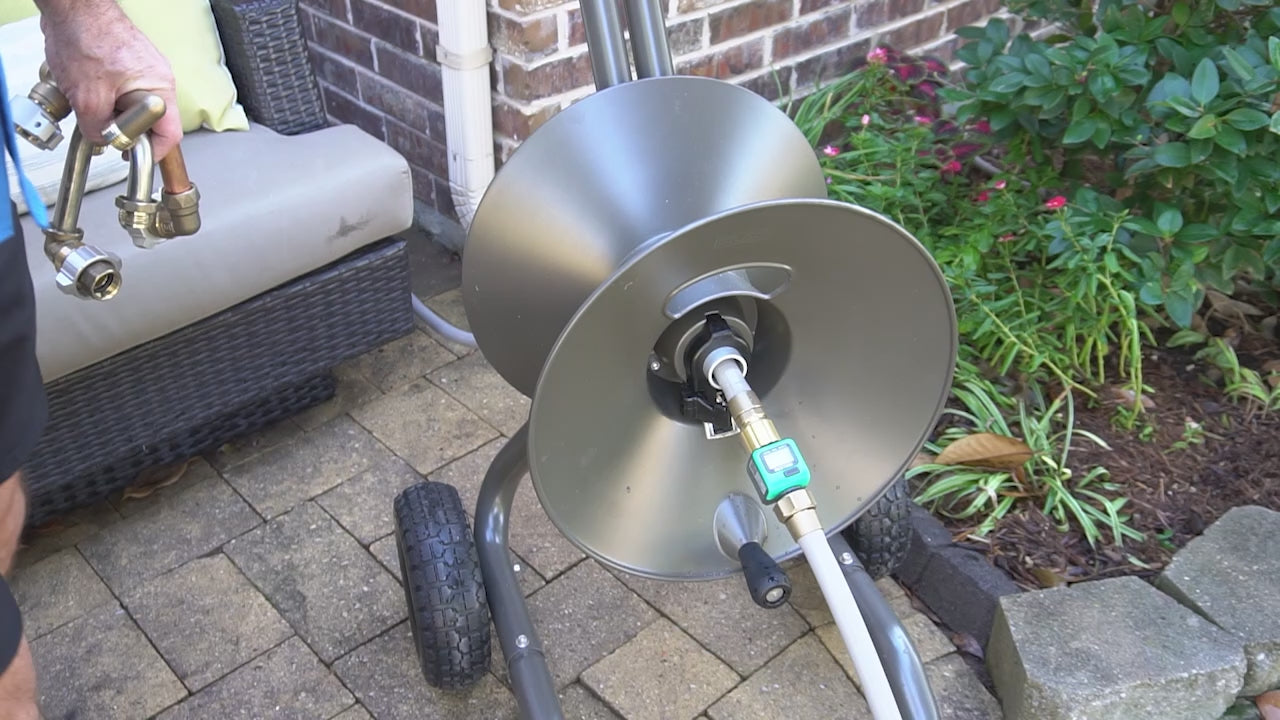

Installation Video
Watch this installation video as this latest swivel design will attach to the reel's axle differently than previous versions.

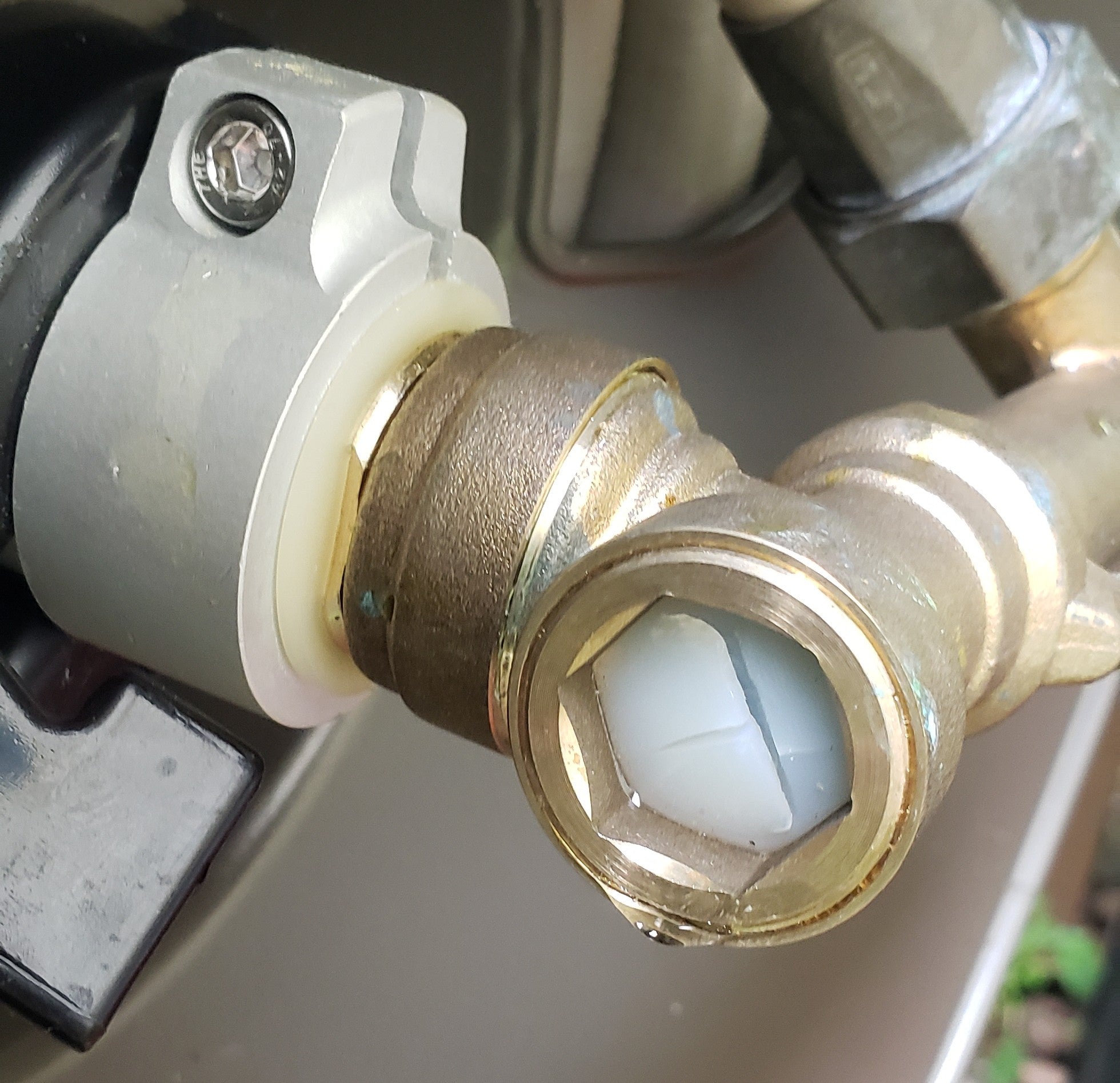

Cracked Gasket?

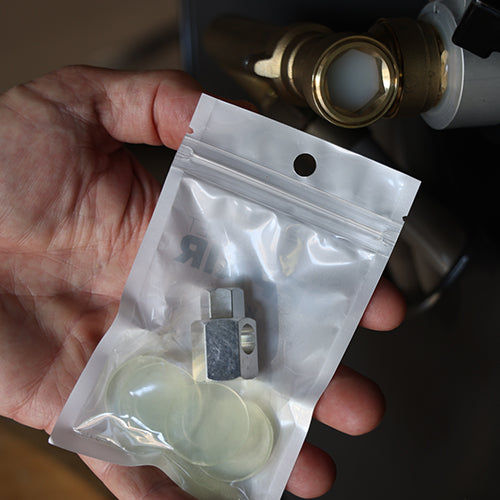

If the expandable "frost" gasket on the 4291 swivel has cracked, but the brass housing appears to be undamaged, you can replace the gasket with our Swivel Gasket Repair Kit. (Item #1189)

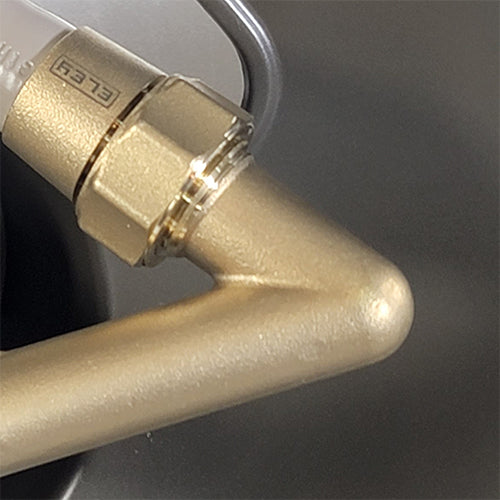

Will the sharp bend restrict water flow?

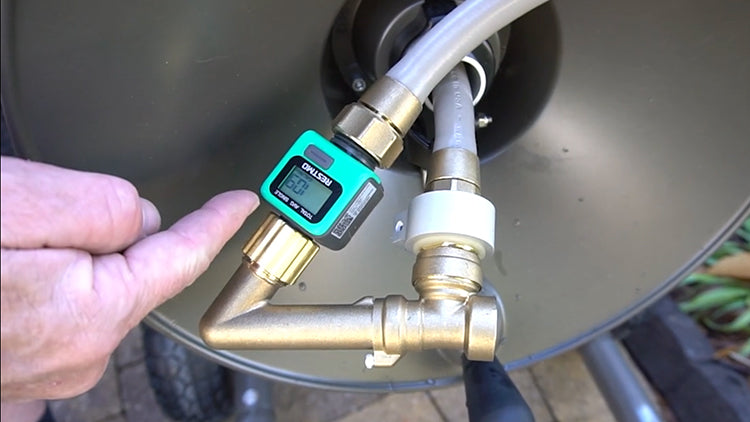

The change in the shape of the garden hose swivel gooseneck does have a theoretical impact on water flow, however, as this short video demonstrates, it is so minimal that our digital flow meter with a resolution of 0.01 gallons per minute (GPM) registers only one-tenth of a gallon per minute. Not even noticable at the end of the hose.
