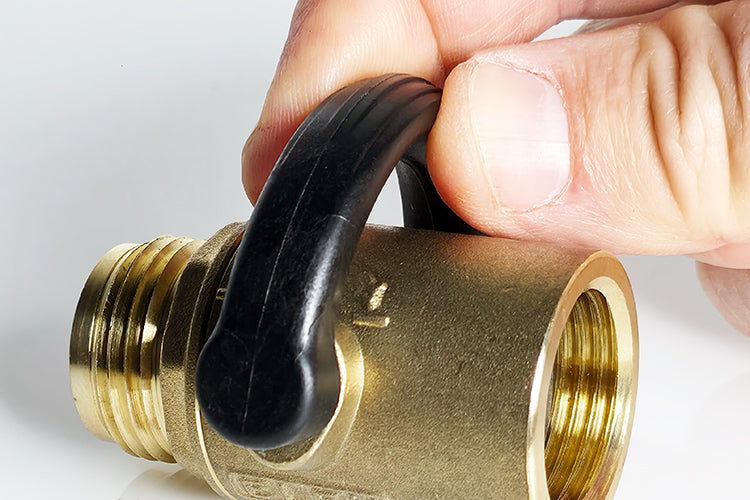

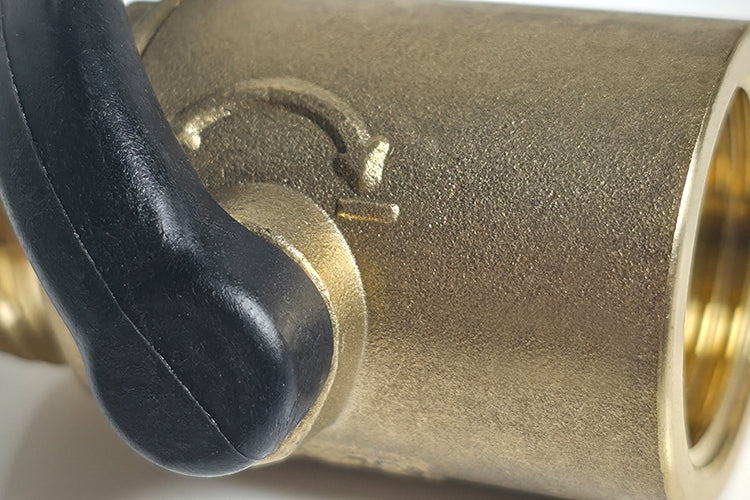

The main body of the ELEY ball valve is constructed with high-quality brass. The chrome-plated ball inside allows for water to flow at full capacity during usage. The lever's push-pull action gives a smooth, easy-to-use experience. And the O-ring gasket provides a water-tight seal to guarantee zero leaks.
A Variety of Uses
The ELEY ball valve was built and designed for different uses to meet your watering needs. It can attach to garden hoses, faucets, or any watering tool. This valve is rated at 90 PSI and with a slight flip of the lever you're able to control this water pressure.
Changing Water Attachments
To properly change water attachments the water pressure must be off. Otherwise you will find yourself kinking the hose (not advisable) or you must turn the water off at the faucet. To solve this problem, the ball valve is your water pressure control at your fingertips. Simply flip the level to the OFF position, change attachments, then flip the level back ON.
Connecting Multiple Hoses
Multiple hose connections? No problem. The ball valve allows you to control the water pressure between hoses.
Quick Connect Usage
The ELEY quick connect system is not only compatible with our ball valve; it's recommended! The quick-connect system works best when there is little to no water pressure on it. Therefore, using the ball valve relieves this unwanted water pressure from the socket allowing you to remove the plug with ease.
Specs & Dimensions
- Weight: 1 lbs. (0.45 kg)
- Max Temperature: 165°F (74°C)
- Max Pressure: 120 PSI (8.3 bar)
- Thru-Hole Size 0.551 inches (14mm)
Click on the thumbnail image below to enlarge the dimensional view.
Is this item drinking water safe?
Yes. Water flowing through your ELEY reels, hoses, and watering tools stays pure because we use only 100% drinking water-safe internal component materials. From the lead-free brass and rubber seals, down to the assembly lube—it’s all safe.
Can the water flow in either direction?
Yes. The internal valve is a ball that simply turns the flow of the water on or off, regardless of which direction it comes from. You can also set the ON/OFF lever at any position to adjust the flow of water from fully on, to fully off, or anywhere in-between.
