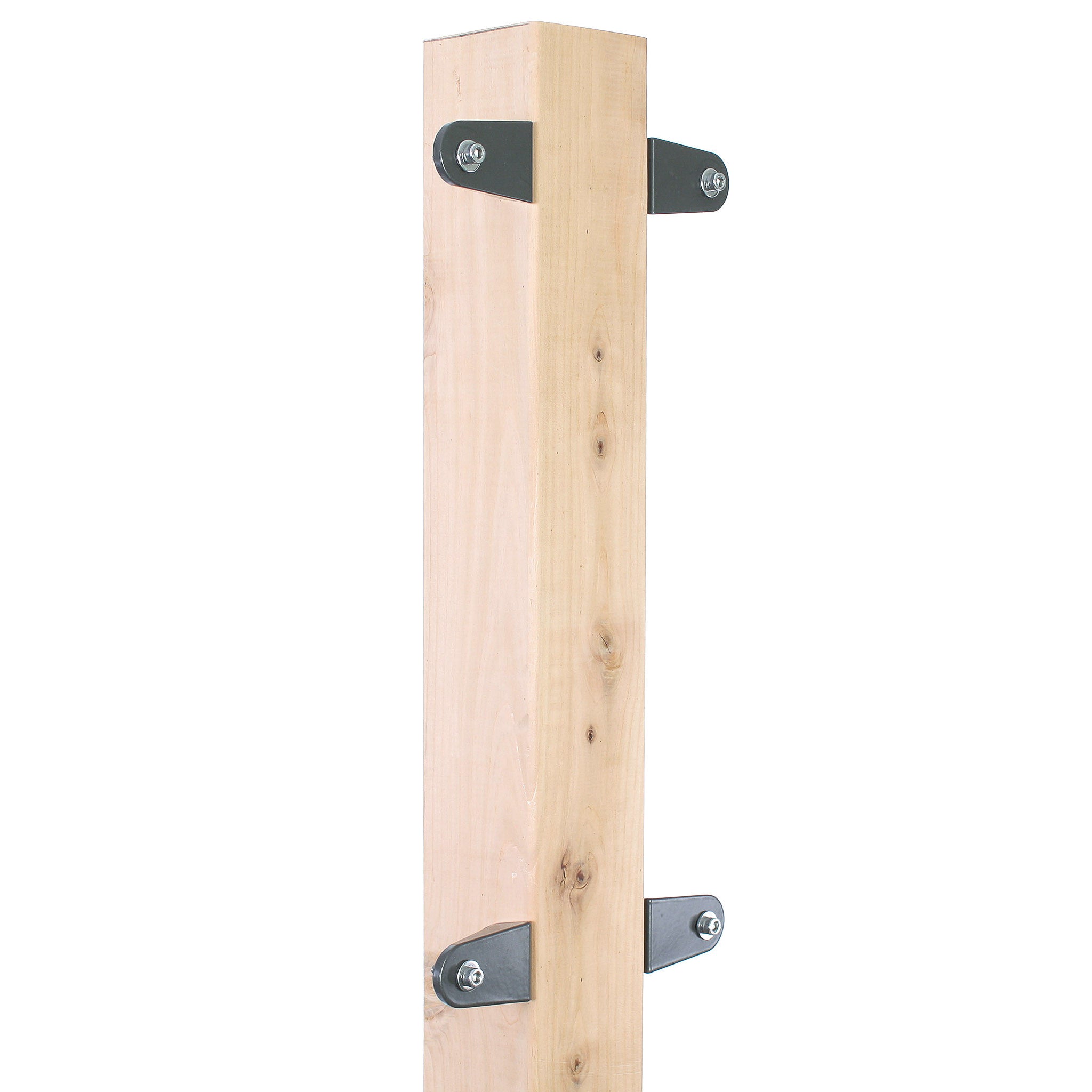

Four 90° brackets allow you to mount an ELEY model 1041 or 1041X wall-mount garden hose reel to any 4x4, 4x6, or 6x6 wood post. The brackets are made from a rugged, rust-proof aluminum alloy and are coated with the same durable Spartan bronze power-coat finish to match the ELEY reels. This kit comes with all the stainless-steel hardware needed for complete installation. The only tools required are a 7/16-inch socket wrench (for the wood lag screws) and the 5mm hex key wrench that is included with the hose reel. Wood post not included.
The innovative mounting brackets are uniquely designed to work on both common wood post sizes. Simply flip the bracket over to change from a 4-inch post to a 6-inch post. Note that although they are referred to as 4-inch and 6-inch posts, the actual dimensions are 3-1/2 and 5-1/2 inches, respectively. The ELEY wall-mount hose reel will need to be assembled in the parallel configuration.
If a wood post hose reel makes the most sense for your application, don't let the idea of digging a hole dissuade you. It's not as daunting as some might imagine. We have provided a helpful resource for you to consider with our How to Install a Wood Post article. There are also several good YouTube video tutorials on installing a wood post. Digging the hole can be done with posthole diggers (pictured) or a power auger. Afterward, you can secure the post with dirt removed from the hole or a concrete mix. Preview the Post Mount Kit Installation Instructions.
Lumber dimensions are a bit misleading. When the board is first rough cut from the log, it is to the true measurement, such as a 4" x 4", 4" x 6" or a 6" x 6" post. However, the drying process and planning of the board reduces it to its finished dimensions. For example, our reference to a 4"x 6" post, is actually a 3-1/2" x 5-1/2" post. This wood post kit is designed to mount our wall mount hose reel (Model 1041) to any post whose exact width is either 3-1/2" or 5-1/2".
We have taken the recommendations of the concrete manufacturers on the recommended hole size. There must be enough concrete from the corner of the post to the edge of the hole. A 4 x 4 post in an 8-inch hole would only give 1-1/2 inches of concrete. Freeze-thaw cycles and loads on the post could easily crack that thin of material. Visit the QUICKRETE website for more details and an informative video on Setting Posts in Concrete.
All hardware supplied with this kit is stainless steel. Each of the four (4) wood lag screws for attaching the brackets to the wood post include 1/4-inch x 2-inch hex head wood screws and a 1/4-inch flat washer. Each of the four (4) screws used for attaching the reel's wall plate to the wood post brackets include an M6 x 25 hex socket head screw, a 1/4-inch flat washer, and an M6 serrated flange nut.
Yes, however, the 4x4 orientation of the bracket may be too narrow with the jacket. The reel might need to be mounted with the post brackets in the 6x6 orientation, with some type of shim to fill the gap between the bracket and the
vinyl sleeve.
Still need assistance? Contact Us
Overall rating: 4.940594 / 5 from 101 reviews.
The Wood Post Mount Kit is highly regarded for its excellent quality, well-designed hardware, and ease of installation. Customers appreciate the clear instructions and the kit's compatibility with various post sizes. The stainless steel mounting hardware ensures durability and ease of use.
Review topics: ["installation","instructions","fit","works","shipping","quality","looks","kit","design","hardware","hose","reel","mount","exception","engineering","eley","directions","solution"].
"This helped me make the decision to purchase the hose reel. After placing a 4x4 in concrete, the installation of the reel and post mount went flawlessly. I am excited about how this will improve my ability to power wash the front and rear of our home."
"I just had my house stuccoed and was looking for another way of mounting my Eley hose reels. I did not want to mount them on the house again. Put in some 4x6 posts and using this kit solved all the problems. I will say it was a bit tight mounting it to one of my 4x6 but the other one went on fine. Highly recommend."
"Easy to install and works great with the wall mount reel"
"Quality product!"
"Quality engineering and materials, easily adapts to different post widths."
"I was able to rotate the mounts for a 6 x 6 and use some spacer adapters I had laying around to mount it to a 4 x 4 post that I had put a decorative vinyl sleeve over where the 4 x 4 mounting orientation would not have worked."
"Great product! I installed my own on an 8x8 post. Looks great, works great. You get what you pay for!"
"Highly recommended"
"Excellent"
"Liked the engineering of brackets with screws and drill bit needed for snung fit."
